Toro Timecutter 22hp 724cc Briggs & Stratton Engine 42″ FAB Deck Z-Turn Mower #77404

Original price was: $3,699.00.Current price is: $3,499.00.

Features & Compatibility

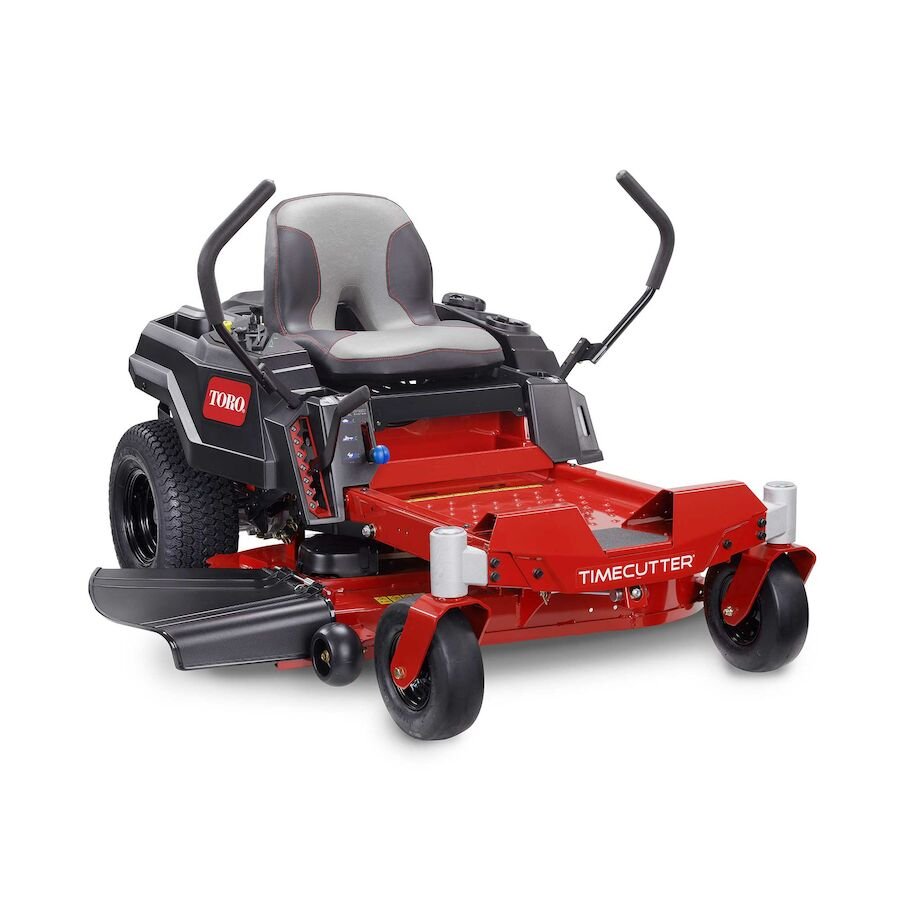

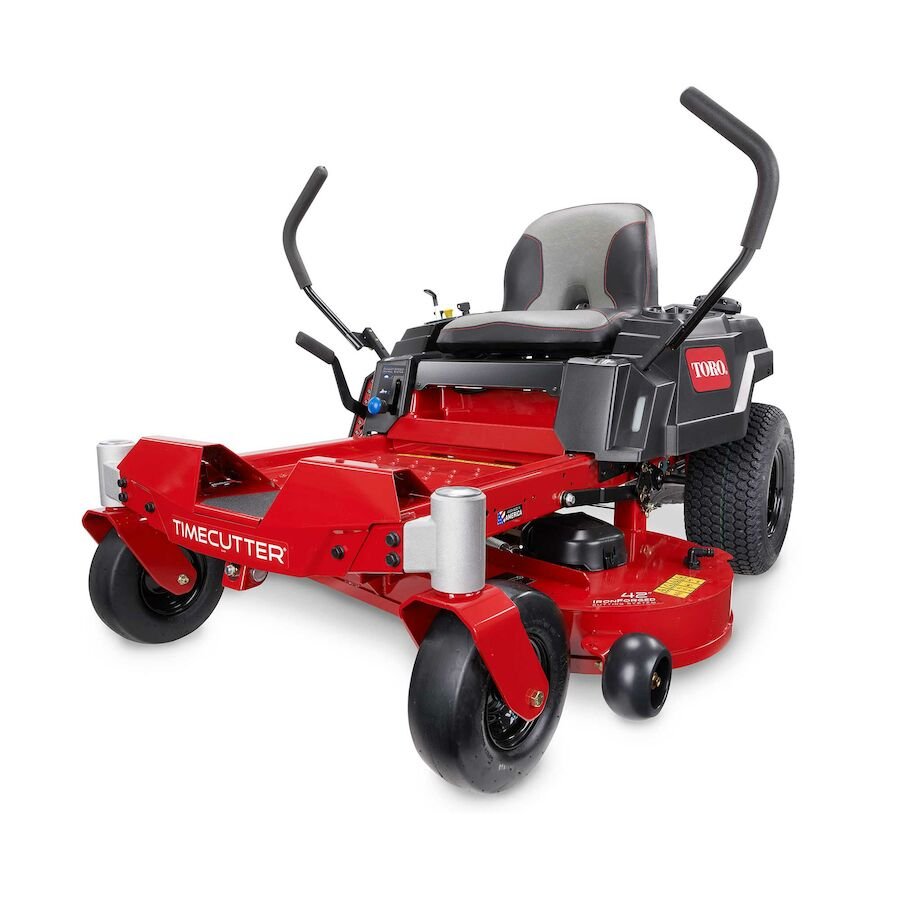

42 in. (107 cm) TimeCutter® Zero Turn Mower

  • Built Like a Bull – IronForged® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
  • Commercial DNA courses through these machines’ veins with the same technology pros depend on.
  • Step-Through Front End – Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
  • Storage Cubby – Now there’s a convenient and safe space in your under-seat cubby to store important items.
  • Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
  • Take control over your mowing speed, while never sacrificing blade tip speed.
  • Shield your engine from tire spray and avoid backsplash on you with protective tire fenders.
  • Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more



You work too hard to let your lawn dictate your leisure schedule. Get serious comfort and a beautiful cut with Toro’s 42 in. TimeCutter. Combining a perfect blend of maneuverability and power, this mower makes quick work of the toughest tasks. This mower is easier to handle than ever with Toro’s Smart Speed® Technology, which gives you total control over the mowing speed. And you can rest easy knowing that Toro stands behind its mowers with a 3-year, 300-hour commercial engine warranty.† And as a Toro owner, you’ll have access to more than 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Specifications

Air FilterStandard Briggs & Stratton Air Cleaner
Anti Scalp Wheels2 Standard
ArmrestsOptional
Bagger Capacity4.9 bushels
Blade Design0.164 in. / 0.417 cm Steel with Blade Stiffner
Blade Tip Speed17,860 ft/min / 5,444 m/min
CARB CompliantNot CARB Compliant
Caster Tires11 in. x4 in. – 5 in. Pneumatic
ClutchElectromagnetic
Cooling SystemAir Cooled
Crankshaft1″ (25 mm) w/Steel Protector
Cup HolderStandard
Cutter SystemSteel Cutting Blade
Cutting Width42 in / 107 cm
Deck Design10-Gauge steel IrongForged®
Deck Material10 Gauge Steel
Discharge ChuteSide
Drive SystemHYDRO
Drive Tires18 in. x 7.5 in. – 8 in (45.7 cm x 19.1 cm – 20.3 cm)
Drive TypeRear-Wheel Drive
Engine22 hp Briggs and Stratton EXI 724cc
Engine BrandBriggs and Stratton
Engine Displacement (cc)724 cc
Engine Horsepower22.0 hp
Engine Power (kW)16.4 kW
Foot Operated Height of CutOptional
Forward Ground/Transport SpeedUp to 7.0 mph / 11.2 kph
Forward Mowing SpeedUp to 7.0 mph / 11.2 kph
Fuel Capacity3 gal. / 11.4 L / 12 Qt.
Fuel TypeGasoline
Greasable BearingsYes
Height of Cut1.5 – 4.5 in. / 3.8 – 11.4 cm
Hitch BracketStandard
Hour MeterOptional
Hydraulic DampenersYes, Non-Cavitating
Hydraulic DriveStandard
Number of Blades2
Product TypeTimeCutter
Product UseResidential
Recommended Oil Type10W-30
Roll-Over Protection (ROPS)Optional
Seat16″ Handcrafted
Spindle BearingsMaintenance-free
Spindle HousingCast-Aluminum
Start TypeElectric
Steering ControlsDual Wrap Around Levers
Steering DampenersStandard Dampers
Terrain TypeFlat with Obstacles
Tow CapacityCombined machine, user, towed weight may not exceed 1,000 lbs.
TransmissionDual Hydrostatic HG-EZT2100
Washout PortStandard

Disclaimer

*22 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Briggs & Stratton®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.†See retailer for complete warranty details.‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
